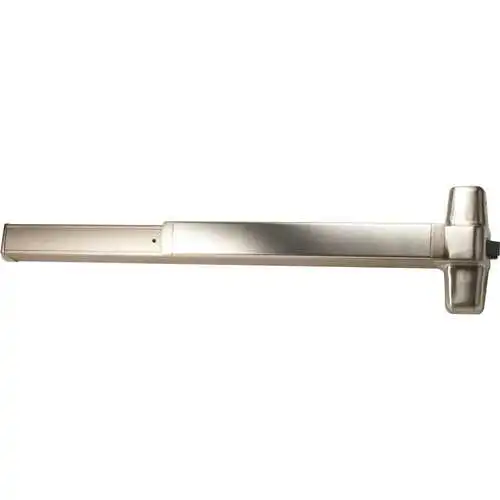

Von Duprin 98EO-F 4 US28 Exit Device Satin Aluminum Clear Anodized

$98.99

SKU: 98EO-F 4 US28 Category: Commercial and Residential Door Hardware Tag: Von Duprin

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

Rim Exit Device, Exit Only, 48 In., Fire Rated, Anodized Aluminum

98-F and 99-F Rim fire exit devices for all types of single doors up to 4′ x 10′ (1219mm x 3048mm) or 8′ x 10′ (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch). Finishes _ US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only.

The 98 device has a smooth mechanism case.

98 Series rim exit devices for made all types of single and double doors. UL Listed. This series has a smooth mechanism case.

Package Height	10.5"
Finish	Aluminum, Anodized
Origin	USA
BAA Qualified	Yes
Product Length	45"
Base Material	Aluminum
Minimum Stile Size	Wide
Door Material	Metal or Wood
Package Length	49.25"
Warranty	3-year warranty
Case Volume	9353
Pack Size	1
Builders Hardware Product Type	Exit Devices
Door Handing	Universal/Reversible
General Material	Brass
Hardware Finish Family	Metal
Product Depth (in.)	49.25
Product Height (in.)	10.5
Product Width (in.)	5
Color Code	628/US28
Package Width	5"
Includes Trim	No
Grade	Grade 1
Door Width	34 In. – 48 In.
Package Qty	1
Mechanical Options	Fire Rated Device
Case Length	49.75"
Device Type	Rim
Product Height	8"
Special Marks	Fire rated 3 Hours {A}
Fire Rated	3 Hours {A}, Yes
Hand	Non-Handed
Case Height	11.75"
Product Width	3.75"
Case Width	16"
Physical Appearance	Wide Stile Pushpad
Color	Satin Aluminum Clear Anodized
Mechanical Function	Exit Only
Package Volume	2585.625
Device Length	48 In.
Door Thickness	1 3/4 In. – 2 1/4 In.
UNSPSC	31162800
