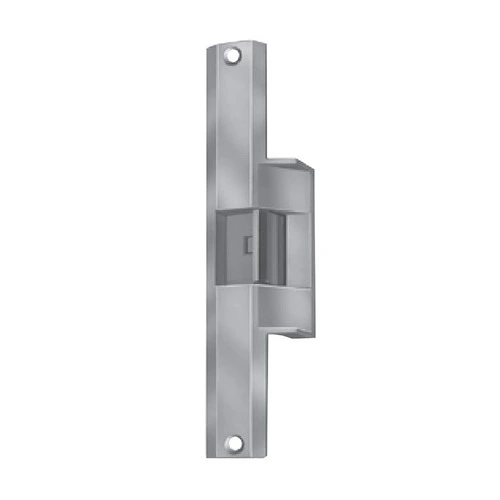

Von Duprin 6224AL 12V US32 FS Electric Strike Bright Stainless Steel

$95.99

SKU: 6224AL 12V US32 FS Category: Door and Window Security Hardware Tag: Von Duprin

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

Electric Strike, for Mortise or Cylindrical Locks, 12VDC, Fail Safe, Bright Stainless Steel

The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6224 is designed for mortise locks without a deadbolt and cylindrical locks with a radiused faceplate to be mounted in the inactive leaf of a pair of aluminum doors.

Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.

The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.

Configuration	Centered
Faceplate Size	9 In. X 1-3/8 In.
Base Material	Stainless Steel
Product Width	1.375"
Product Length	9"
Product Height	2"
Package Qty	1
Operating Voltage	12VDC
Keeper Size	3/4 In.
Frame Depth	1-5/8 In.
Frame Application	Aluminum
Faceplate Shape	Radius Face, Square Corners
Use With	Cylindrical and Mortise Locks
ANSI Number	0
Amp Draw	600mA
Package Width	5.875"
Package Volume	161.9296875
Package Length	10.5"
Package Height	2.625"
Function	Electrically Locked (Fail Safe)
Color Code	629/US32
Color	Bright Stainless Steel
Switch Type	None
