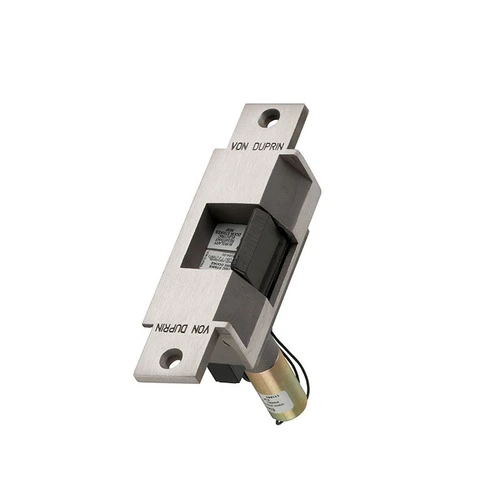

Von Duprin 6223 12V US10 FS DS Electric Strike Satin Bronze Clear Coated

$99.99

SKU: 6223 12V US10 FS DS Category: Door and Window Security Hardware Tag: Von Duprin

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

Electric Strike, for Mortise or Cylindrical Locks, 12VDC, Fail Safe, Dual Monitor Switch, Satin Bronze

The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6223 is designed for mortise locks without a deadbolt and cylindrical locks to be mounted in the inactive leaf of a pair of doors.

Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.

The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.

Use With	Cylindrical and Mortise Locks
Package Qty	1
Package Length	10.5"
Base Material	Bronze
Faceplate Shape	Flat Face, Square Corners
Product Length	6"
Switch Type	DS
Color Code	612/US10
Package Width	5.875"
ANSI Number	0
Package Height	2.625"
Product Height	1.25"
Package Volume	161.9296875
Operating Voltage	12VDC
Configuration	Centered
Frame Depth	4-1/2 In.
Function	Electrically Locked (Fail Safe)
Faceplate Size	6 In. X 1-1/4 In.
Product Width	1.745"
Keeper Size	3/4 In.
Color	Satin Bronze Clear Coated
Amp Draw	600mA
Frame Application	Metal, Aluminum or Wood
