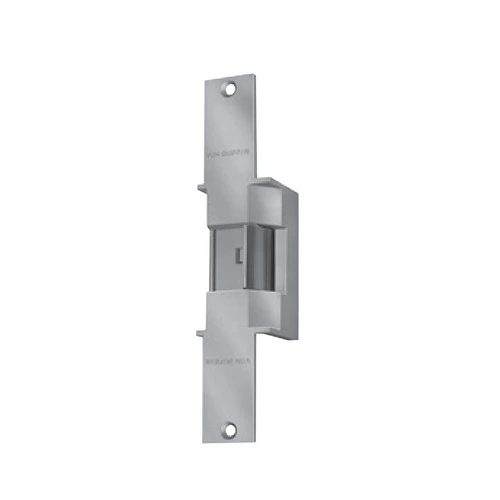

Electric Strike, for Mortise or Cylindrical Locks, 24VDC, Fail Safe, Low Current Dual Monitor Switch, Satin Brass
The Von Duprin 6200 Series is a heavy duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1 and designed to withstand abuse. The 6222 is designed for mortise locks witout a deadbolt and cylindrical locks, to be mounted in an active leaf of a pair of doors.
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.
| Use With | Cylindrical and Mortise Locks |
|---|---|
| Package Qty | 1 |
| Package Length | 10.5" |
| Base Material | Brass |
| Faceplate Shape | Flat Face, Square Corners |
| Product Length | 9" |
| Switch Type | DS-LC |
| Color Code | 606/US4 |
| Package Width | 5.875" |
| ANSI Number | 0 |
| Package Height | 2.625" |
| Product Height | 2" |
| Package Volume | 161.9296875 |
| Operating Voltage | 24VDC |
| Configuration | Centered |
| Frame Depth | 2 In. |
| Function | Electrically Locked (Fail Safe) |
| Faceplate Size | 9 In. X 1-3/8 In. |
| Product Width | 2.063" |
| Keeper Size | 3/4 In. |
| Color | Satin Brass |
| Amp Draw | 330mA |
| Frame Application | Metal or Aluminum |
