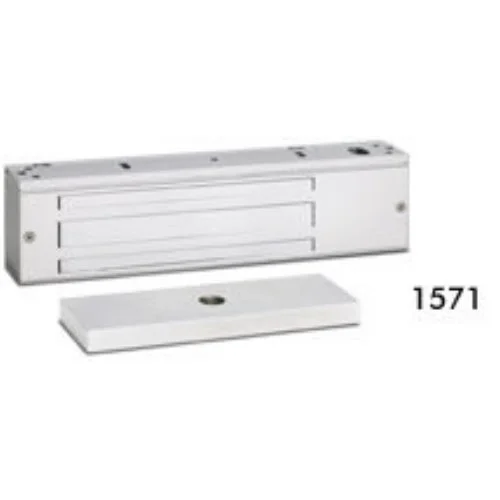

SDC 1571VD 1570 Series 12-Volt/24-Volt DC 1200 Lbs. Holding Force Aluminum DPS Option Single Electromagnetic Door Lock

$97.99

SKU: 1571VD Category: Door and Window Security Hardware Tag: SDC

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution. The modular EMLock assembly makes them easy to stock, install, upgrade and mainta in. SDC 1500 series EMLocks include a lifetime warranty and are available in 650 lbs. 1200 lbs. and 1650 lbs. holding force. Compatible with any access control system, all EmLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks are UL Listed and ANSI Grade 1 compliant.

Single door electromagnetic lock
1200 lbs. holding force
12-Volt/24-Volt DC voltage
125 mA at 24-Volt DC, 250 mA at 12-Volt DC current draw
(DPS) Door Position Switch
11 in. L x 2-3/4 in. H x 1-9/16 in. D unit dimension
DPS switch
Includes machine screws
UL listed, UL 294
Limited warranty

Finish	628
Door Locks & Knobs Product Type	Electromagnetic Locks
UNSPSC	46171520
Security/ANSI Grade	ANSI Grade 1 (Best)
Required Battery Type	Hardwired
Maximum User Codes	0
Hardware Finish Family	Metal
General Material	Aluminum
Door Handing	Universal/Reversible
Warranty	Limited Warranty
Certifications and Listings	UL Recognized
Assembled Width (in.)	3.5
Assembled Height (in.)	15.25
Assembled Depth (in.)	3
Manufacturer Warranty	Limited Warranty
Pack Size	1
Product Type	1571 Series Mag Lock
