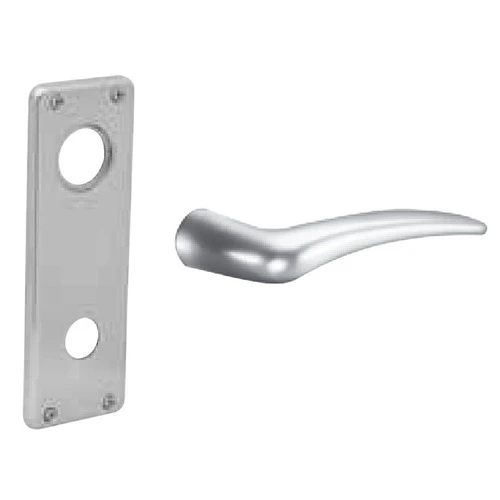

Sargent 8272-24V WTA 10 RH Electric Mortise Lock Satin Bronze Clear Coated

$95.99

SKU: 8272-24V WTA 10 RH Category: Door and Window Security Hardware Tag: Sargent

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

Double Cylinder, Fail Safe, 24V Electrified Mortise Lock, WT Escutcheon, A Lever, Right Hand, Satin Bronze

Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail safe and fail secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doos and sitisfy industry standards for operating temperature, shock and fire hazard.

Designed and constructed with high quality components to provide maximum security.

The Sargent electrified 8270 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: Strong – Durable – Flexible – Innovative and Secure.

Strike Number	82-0110
Door Thickness	1-3/4"
Package Length	9.25"
Power	Hard Wired
Lever/Knob Design	A – Lever
Strike Height	4-7/8"
Keyway	LA
Base Material	Bronze
Rose/Escutcheon Design	WT – Escutcheon
BAA Qualified	Yes
Origin	USA
Strike Type	ASA
Color Code	612/US10
Bolt Protection	3/4"
Package Width	5.625"
Keying	Keyed Different
Screws	Combination
Package Volume	227.6367188
Package Height	4.375"
Package Qty	1
Application	Complete Lock
Cylinder Type	Conventional Cylinder
Operating Voltage	12VDC/24VDC
Strike Width	1-1/4"
Key(s)	Cut
Special Marks	Conventional cylinder, Fire rated 2 Hours {B}
Fire Rated	2 Hours {B}
Grade	Grade 1
Hand	RH
Function	72-Electrical Fail Safe
Color	Satin Bronze Clear Coated
Amp Draw	500mA Peak, 15mA Holding
Handing	Right Hand
