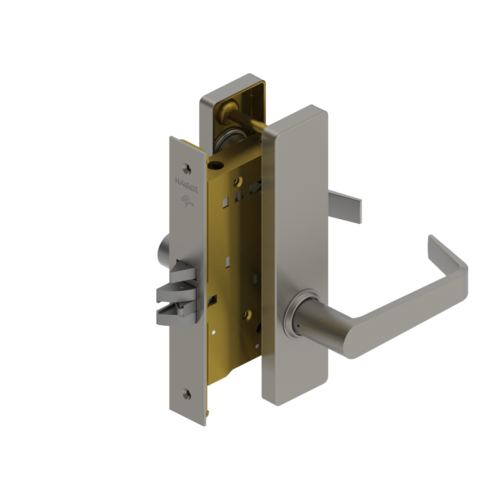

Hager 153579 3870 ESC 32D.WTS.ICFULL7.NC – E Classroom (F05)

3870 ESC 32D.WTS.ICFULL7.NC
SPECS :

Applications:

• Heavy Duty Commercial
• Industrial
• Institutional

Backsets: 2-3/4″ (70mm)

Certifications:

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours “A” label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.13, Series 1000, Grade 1

CTC Length: 3-5/8″ (92mm)

Cylinders Cores:

• Brass – keyed different – Schlage C keyway – standard
• Drilled 6-Pin, Keyed 5-Pin – standard
• Other keying options, including keyed 6-pin, available from factory
• Zero bit cylinders will be 6 pin keyed – standard
• SFIC mortise housings available
• SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately – standard
• LFIC mortise housings available
• LFIC zero bitted or combinated, brass 6-pin sold separately – standard. Schlage C keyway only.
• Schlage “L” cam is used standard on Hager mortise locks

Escutcheons: 1-15/16″ x 8″ (50 mm x 203 mm)

Exposed Trim:

• Cast Zinc -Standard
• Cast Stainless Steel – Optional for Withnell (WTS) and William (WLS) only

Functions: Classroom (F05)

Keyway: Schlage C – Standard, other keyways optional

Latchbolt Type: 3/4″ (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options: Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Notes:

• No exposed mounting screws
• Concealed thru-bolts
• Body is easily field reversible (shipped LHR by default)
• Self adjusting case for beveled doors

Options:

• Tactile Warning
• Lead Lining
• Split Finish
• Factory Handing Available (if specified)
• Request to Exit (RX)

Strike Strikes:

• 1-1/4″ x 4-7/8″ (32 mm x 124 mm) ASA strike
• Optional strikes available
