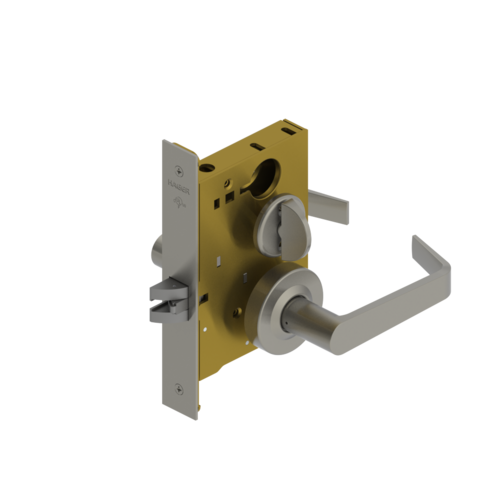

Hager 048661 3896 SECT 32D.WTN.FL1C – S Privacy W/ Indicator (F22)

3896 SECT 32D.WTN.FL1C
SPECS :

Applications:

• Heavy Duty Commercial
• Industrial
• Institutional

Backsets: 2-3/4″ (70mm)

Certifications:

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours “A” label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.13, Series 1000, Grade 1

CTC Length: 3-5/8″ (92mm)

Exposed Trim:

• Cast Zinc -Standard
• Cast Stainless Steel – Optional for Withnell (WTS) and William (WLS) only

Functions: Privacy w/ Indicator (F22)

Latchbolt Type: 3/4″ (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options: Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Notes:

• Exterior indicator housing displays “Occupied” or “Vacant”
• Emergency release on exterior side via supplied key
• No exposed mounting screws
• Concealed thru-bolts
• Body is easily field reversible (shipped LHR by default)
• Self adjusting case for beveled doors

Options:

• Tactile Warning
• Lead Lining
• Split Finish
• Factory Handing Available (if specified)

Strike Strikes:

• 1-1/4″ x 4-7/8″ (32 mm x 124 mm) ASA strike
• Optional strikes available
