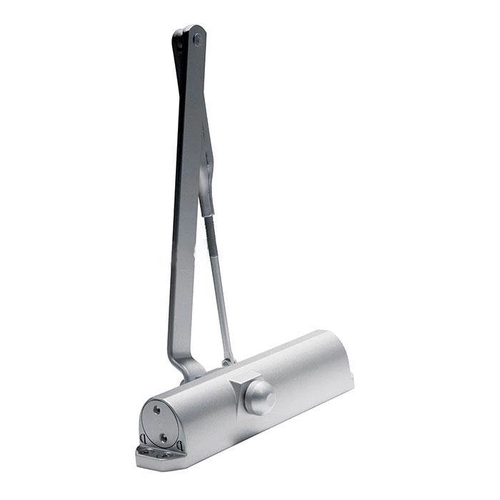

DORMA 7305-ARP-689 7305 Series Surface Closer, Aluminum Painted

Size 5, Round Arm Non-Hold Open Arm, Tri-Pack, 689 Aluminum
7300 SeriesSurface Closer

The 7300 Series closers offer modern styling for a new era of safe and reliable door control.
The 7300 Series offers a compact design and is available in an assortment of sprayed finishes to complement any opening’s decor. These features, along with numerous installation options and fixed spring sizes, make this closer an ideal solution in a variety of applications.

Technical details:

• Fixed spring sizes 3, 4, and 5.

• Non-handed for regular, top jamb, and parallel arm applications.

• Quick and easy to install.

• Compact design.

• Two noncritical adjusting valves (sweep and latch) work to provide consistent closing speeds under a wide variety of temperatures.

• Adjustable backcheck provides cushioning when the door is abusively opened.

• Available with optional self-drilling screws for steel door and frame applications (DPK86).

• Available with optional self-tapping screws for aluminum door and frame applications (TPK86).

Certification:

• ANSI/BHMA A156.4 Grade 1 certified.

• UL and CUL listed.

• Meets UL10C for positive pressure.

• CSFM approved

Specification:

• All closers shall be DORMA 7300 Series hydraulic surface applied rack and pinion closers.

• The closer has two independent valves to separately control sweep and latch closing speeds and provide constant speeds when temperatures change.

• Standard with backcheck to provide cushioning effect in opening.

Optional specification:

• All 7300 closers to have slim plastic cover (COV).

• Closers to have arm with a selective single point hold open between 80°–170° for regular mount (FH) and 70°–175° for parallel arm mount (specify FHP).

• All 7300 closers to have parallel arm bracket for non-hold open parallel arm applications (P86).

• All closers to have sex nuts with machine screws for 1-3/4″ door (SNB1) or 1-3/8″ door (SNB2).

• Closers to have self-drilling screws for steel doors and frames (DPK86).

• Closers to have self-tapping screws for aluminum doors and frames (TPK86).

• Closers to have TORX security for all exposed fasteners (TX86).

Finishes: Aluminum:

• 689

Bronze:

• 691 (Dull)
• 690 (Statuary)
• 695 (Dark Duranodic)

Gold:

• 696

Black:

• 693

• For optional custom color or Designer Color Finishes Contact Customer Service.

Warranty:

• For details, refer to Limited Warranty on our website at go.dormakaba.com/Terms-DA

7303–7305 Features: Fixed spring sizes:

• 3, 4, 5

Non-handed:

• yes

Parallel arm bracket:

• optional

Controlled closing with two adjustment valves:

• 180°–10° – 10°–0°

Backcheck:

• yes

Hold open:

• optional

Self-drilling screws (DPK):

• optional

Self-tapping screws (TPK):

• optional

Tamper-resistant TORX screws:

• optional

Slim plastic cover:

• optional
