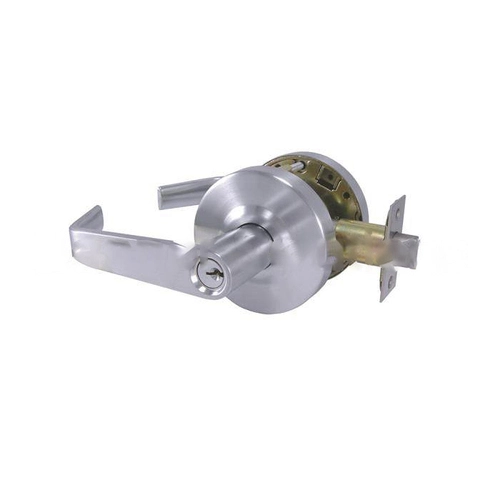

Design Hardware DH-X-86IC-F-26D-LC X86IC Storeroom Lever Lockset, SFIC, Satin Chrome

X Series Grade 1 – Storeroom Lock with SFIC Prep LC, Flat Lever, 26D Satin Chrome
X Series Heavy Duty Grade 1 Cylindrical Lockset

Certification:

• ANSI : Meets & Exceeds ANSI – A156.2, Series 4000, Grade 1 Standards
• UL Listings : UL Listed for “A” Label 3 Hour Fire Doors
• ADA Compliance : Meets ADA and ANSI A117.1 accessibility codes

Features

• Lock Chassis– Steel, Zinc dichromated chassis for Corrosion Resistance
• Clutching– Clutching levers standard for Vandal resistance on locking functions
• Trim– 5″ Solid zinc diecast levers, 3 3/8″ wrought brass roses
• Lever Return– Anti-sag mechanism with independent lever return springs to prevent lever sag
• Handing– Non-Handed – Completely reversible (S-A & S-B lever styles are handed)
• Backset & Latchface– 2 3/4″ backset std. with 1 1/8″ x 2 1/4″ latchface, 2 3/8″ backset is available with 1″ x 2 1/4″ latchface both with self adjusting front for square or beveled edge doors
• Latchbolt– Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
• Cylinder Options– 6 Pin Brass Cylinder, C Kwy, with 2 Keys (standard), Prepared for Small format IC core (less core)
• Optional Keyways– 11 popular competitor keyways available with replacement cylinders (extra charge applies)
• Note– Replacement cylinders are supplied loose and not installed in locksets
• Strikes– 4 7/8″ x 1 1/4″ ASA standard – T strike & Full lip strikes available when specified
• Door Preparation– ANSI A115.2 – 2 1/8″ crossbore with (2) 3/8″ Thru bolt holes
• Door Thickness– Factory Set for 1 3/4″ Door thickness – 1 3/8″ require shims, can be adjusted to fit up to 2″ thick
• Lever Designs– Flat (standard, shown above), Curved, Half Curved, S-A & S-B
• Standard Finishes– US3 PVD*, US4, US10B, US15, US26 PVD*, US26D (PVD = Lifetime Finish)
• Marine Grade Option– Marine Grade 316 Stainless steel lever and rose cover upgrade available
• Fasteners– Combination screws for wood or metal doors & frames
• Warranty– Limited Lifetime Warranty
