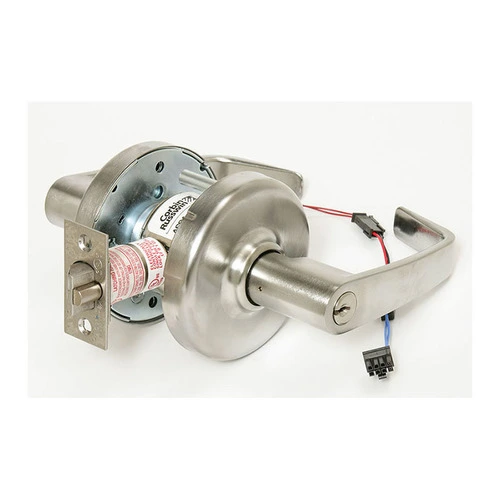

Corbin Russwin CL33905 NZD 626 24AD CL33905 Electrified Lockset, Satin Chrome

Fail Secure with Newport Lever, 626 Satin Chrome, ANSI Strike, 2-3/4″ Backset, 24V-AC/DC, Keyed Random
CL33900Electrified Lockset

ElectroLynx®
ElectroLynx®, a new quick-connect feature of ASSA ABLOY Group companies, takes the guesswork out of installing electrified door hardware products. It’s … Hardwiring Made Easy. By using standard “plug and play” connectors, a simple “click” links power from the incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders, and strikes. What normally takes an hour or more can be connected in virtually minutes.

The Securitron PowerJump™ ICPT
Inductive Coupling Power Transfer delivers power contactlessly and invisibly between the frame and door to power electrified hardware on the door. The PowerJump can be installed at the latch side or hinge side of the door and transfers up to 6 watts of power without pins or wires across the door gap, eliminating points of vulnerability and wear … and no need to core drill the door. The PowerJump is field selectable for 12VDC or 24VDC systems and is ideal for fail secure applications. The unit can hold electrified latches open in continuous duty or can momentarily energize the lockset for latch retraction.

Applications:

Provides remote locking and unlocking, utilizing the provenCL3300 Series Cylindrical Lockset. Ideal for door control whereincreased security is necessary at all times, while meeting lifesafety codes.

• Stairwell towers

• Tenant space

• Pharmacies

• Computer rooms

• High-security areas

Advantages:

• Utilizes the CL3300 Series Cylindrical Lockset with Lever Release™ Mechanism

• Self-contained integral solenoid allows installation in modified cylindrical prep

• Minimal power requirements – device is designed to lock or unlock as the situation demands

• Available in either 12 or 24VAC/VDC

• Mechanical cylinder override

• Fail Safe and Fail Secure mode available

• Optional M92 Request to Exit (REX) switch

• ElectroLynx® 8-pin connector

Certification/Compliance: ANSI/BHMA:

• Meets A156.2 Series 4000, Grade 1.
• Meets A117.1 Accessibility Code.

Federal:

• Meets FF-H-106C.

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard):

• All levers with returns comply; levers return to within 1/2″ (13mm) of door face.

UL-cUL:

• All locks with 1/2″ (13mm) throw latchbolt listed for A label and lesser class 4′ x 10′ single doors. All locks with 3/4″ (19mm) throw latchbolt listed for A label and lesser class 8′ x 10′ pairs of doors. Letter F and UL symbol on latch front indicate listing.

Specifications: Handed:

• Non-Handed
• (Except FZD trim)

Door Thickness:

• 1-3/4″ (44mm) – 2″ (51mm) standard. Optional: Over 2″ (51mm) – 2-1/4″ (57mm)

Lock Chassis:

• Steel, zinc dichromated for corrosion resistance.

Backset:

• 2-3/4″ (70mm) standard. Optional: 3-3/4″ (95mm) and 5″ (127mm)

Latchbolt:

• Stainless Steel, 1/2″ (13mm) throw. Optional: 3/4″ (19mm) throw deadlocking fire latch for pair of doors

Auxiliary Latchbolt:

• Deadlocking latchbolt prevents manipulation when door is closed.

Front:

• Wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).

Strike:

• Wrought brass, bronze, or stainless steel, ANSI curved lip standard, 4-7/8″ (124mm) x 1-1/4″ (32mm) x 1-1/4″ (32mm) lip to center.

Trims:

• Available with all lever designs: Armstrong, Newport, Princeton, Frascati

Cylinder:

• Brass, 6-pin L4 keyway, 0-bitted standard

Keys:

• Two nickel silver standard

Voltage:

• Locks are universal for AC or DC. Available with 12VAC/DC or 24VAC/DC

Electrical Specifications:

• 250mA @ 12VAC/VDC
• 150mA @ 24VAC/VDC
• Continuous duty solenoid

Monitoring Option M92 – Request to Exit Monitoring:
(Non-Handed)

• Request to Exit monitoring is a SPDT switch which monitors the activation of the trim.

Warranty:

• Two-year limited

Keying Features Available:

• Master keying
• Construction master keying
• Visual key control
• Concealed key control
• Interchangeable core (IC)
• Security
• Security IC (not available with CL3329)
• Pyramid (not available with CL3329)
• Pyramid IC (not available with CL3329)
• Access 3®
• Access 3® IC (not available with CL3329)

Finishes:

• 605: Bright Brass
• 606: Satin Brass
• 611: Bright Bronze
• 612: Satin Bronze
• 613: Dark Oxidized Satin Bronze, Oil Rubbed
• 613E: Dark Oxidized Satin Bronze – equivalent
• 613L: Dark Oxidized Satin Bronze, Clear Coated
• 618: Bright Nickel Plated
• 619: Satin Nickel Plated
• 619C: Satin Nickel Plated with MicroShield®
• 625: Bright Chromium Plated
• 626: Satin Chromium Plated
• 626C: Satin Chromium Plated with MicroShield®
• 722: Black Oxidized Bronze, Oil Rubbed
• BSP: Black Suede Powder Coat
• WSP: White Suede Powder Coat

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
