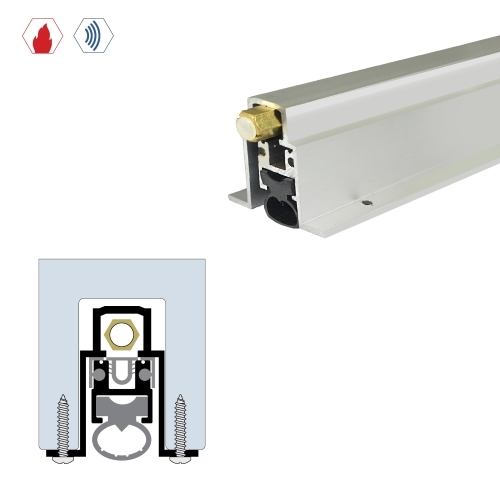

Brixwell 7463CA-EA-96 Concealed Automatic Door Bottom (1-9/16″ By 1-5/8″) Clear Anodized

Name: Brixwell 7463CA-EA-96 Concealed Automatic Door Bottom (1-9/16" By 1-5/8") Clear Anodized
SKU: 7463CA-EA-96
Availability: InStock

$97.99

MATERIALS / SPECIFICATIONS

Aluminum is 6063-T6 alloy, 204R1Clear Anodized

Solid Rubber Extrusion is Black and self-extinguishing

Screws are standard (#6 x 1/2″ SMS self-drilling screws) supplied

Brass Hex Nut to adjust drop

Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions

Self-leveling door seal up to maximum 1″ drop

Replacement closed cell sponge neoprene – Part #4563N

Unit supplied standard with 1 pair of end caps – Part #4063EC-AP

FEATURES

Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors

5 million cycles tested

Size	84 1/8” – 96”
Option	Electrical Actuator
