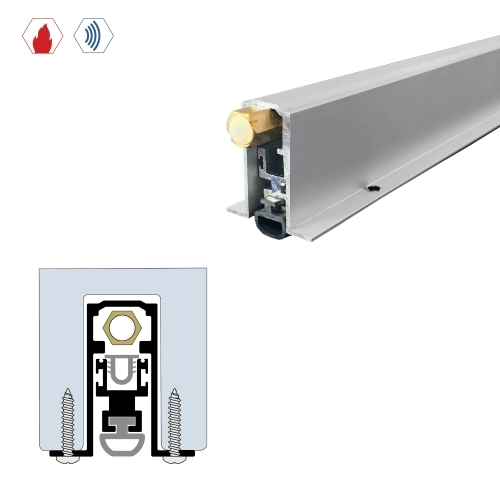

Brixwell 7053CA-TD-48 Concealed Automatic Door Bottom (1-11/32″ By 1-9/16″) Clear Anodized

Name: Brixwell 7053CA-TD-48 Concealed Automatic Door Bottom (1-11/32" By 1-9/16") Clear Anodized
SKU: 7053CA-TD-48
Availability: InStock

$38.46

MATERIALS / SPECIFICATIONS

Solid Rubber Extrusion is Black

Clear Anodized Aluminum

Screws are standard (#6 x 1/2″ SMS self-drilling screws) supplied

Brass Hex Nut

Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions

Self-leveling door seal up to maximum 1″ drop

Replacement neoprene – Part #4053N or optional Part #4441N

Unit supplied standard with 1 pair of end caps – Part #4063EC-AP

FEATURES

Designed to drop like a scissor (hinge side first then self-leveling to compensate for uneven floors)

5 million cycles tested

Size	36 1/8” – 48”
Option	Top Door Installation
