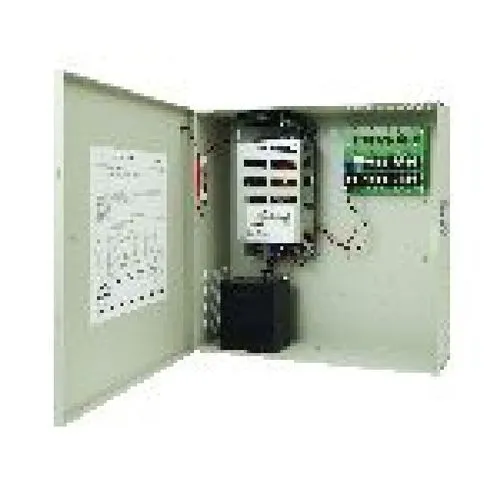

Assa Abloy Electronic Security Hardware – Securitron AQU128-8C Power Supply – 8A, 12 VDC, 8 PTC Outputs

Power Supply, 12VDC 8A, 8 Output, PTC

The Securitron AccuPower AQU128 Series of switching power supplies are single voltage, supervised units with a battery charger. They provide 8A at 12 VDC, with up to 16 independently controlled, power limited outputs. Provides 8A/12 VDC continuous output. Tolerates brownout or overvoltage input from 90-240 VAC. Includes thermal shutdown protection with auto restart. Circuit breaker protects against overcurrent and reverse battery faultS. Low battery disconnect prevents deep discharge. Dedicated voltage enables faster battery charging even under full load. MagnaCare lifetime replacement, no fault warranty. Available with up to 16 Class 2 power limited outputs. Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/ dry contact option, fire relay only, or configurable outputs with fire relay input. Universal input 90-240 VAC. LED indicators and form “C” contacts for supervision. Supports up to two (2) sealed gel, AGM or wet lead acid batteries. Operating temperature is between -4 to +104F [-20 to +40C].

Power supplies are necessary for electromechanical access control.

Securitron also offers energy efficient power supplies.
