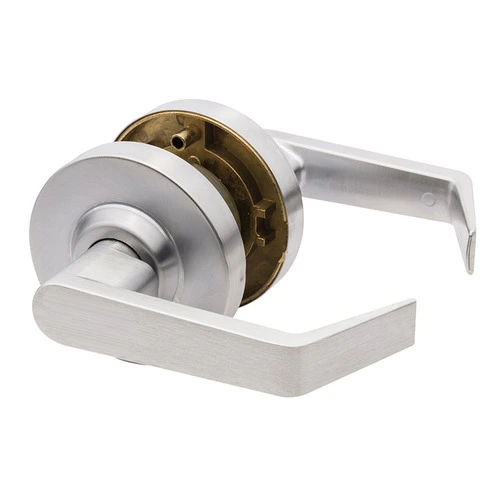

Arrow QL01SB 26D QL Series Cylindrical Lever Lock, Satin Chrome

$95.99

SKU: QL01SB 26D Category: Commercial and Residential Door Hardware Tag: Arrow

Prompt service, every time.
Green products, guaranteed.
Secure Payments, Secure Shopping
Friendly, efficient service, always online.

Robust Grade 1 Lever Lockset – Passage Function – Sierra (SB) Lever – 306 ANSI Strike (1-1/4″ x 4-7/8″, 1-1/4″ Lip, Square Corner) – Q73 Spring Latch (1-1/8″, Square Corner, 2-3/4″ Backset) – 26D Satin Chrome Finish
QL Series Cylindrical Lever Locks

The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Certification:

Arrow QL Series Cylindrical Lever Locks are BHMA Grade 1 Certified, ANSI/BHMA A156.2, Series 4000
All Arrow QL Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors
Meets American with Disabilities Act Requirements

Features

Door Preparation– Requires standard 2-1/8″ (53.97mm) bore through door
Backset– 2-3/4″ (69.85mm)
Door Thickness– Fits 1-3/8″ (34.93mm) to 1-3/4″ (44.45mm) doors standard.
Latch– Stainless Steel 1/2″ (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front– 1-1/8″ x 2-1/4″ for 2-3/4″ (69.85mm) backset.
Exposed Trim– QL Levers are pressure cast zinc measuring 4-3/4″ (120.65mm) in length. QL Roses are wrought brass 3-11/32″ (84.8mm) diameter. Total projection from face of door is 2-17/32″ (64.5mm).
Freewheeling Lever
Warranty– Ten Year Warranty
Handing– Non-handed
Packaging– 6 per case
Strike– 4-7/8″ ANSI (123.83mm)
Cylinder– Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
Keys– 2 brass keys

Base Material	Brass or Bronze
Backset	2-3/4", 1-1/8" x 2-1/4", Square Corner
Function	01-Passage
Color Code	626/US26D
Color	Satin Chrome
Hand	Not Handed
Thickness	1-3/8" – 1-3/4"
Grade	ANSI/BHMA Grade 1
Finish	Satin Chrome
Strike	ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
Package Height	4.125"
Finish Description	Satin Chrome
Lever Style	SB-Sierra
Rose/Escutcheon Trim	Round Rose
Product Type	Cylindrical Lock
Projection	2.5313
Lever Length	4.7500
Door Thickness	1-3/8" – 1-3/4"
Bore Size	2.1250
Fire Rated	3 Hours {A}
Package Length	8.375"
Strike Width	1-1/4"
Product Height	3.34375"
Strike Type	ASA
Strike Number	306
Strike Height	4-7/8"
Special Marks	Fire rated 3 Hours {A}
Screws	Combination
Rose/Escutcheon Design	B – Rose
Product Width	2.53125"
Product Length	4.75"
Package Qty	1
Package Volume	241.828125
Lock Face Size	2-1/4" x 1-1/8"
Lever/Knob Design	S – Sierra
Latch Type	Spring Latch (Unguarded)
Latch Number	Q73
Latch Backset Dim	2-3/4"
Bolt Protection	1/2"
ANSI Function	F75 – Passage
Package Width	7"
ADA Approved	False
